北半球#

北半球底图布局 (cedarkit.maps.domains.NorthPolarMapDomain) 绘制北半球图形，使用北半球立体投影 (cartopy.crs.NorthPolarStereo)，默认中心经度东经 110 度。

准备#

导入需要的包

import numpy as np
import pandas as pd

from cedarkit.maps.chart import Panel
from cedarkit.maps.domains import NorthPolarMapDomain
from cedarkit.maps.map import set_default_map_package
from cedarkit.maps.style import ContourStyle
from cedarkit.maps.colormap import get_ncl_colormap

设置使用 CEMC 地图包

set_default_map_package("cedarkit.maps.map.cemc")

'cedarkit.maps.map.cemc'

定义绘图样式

contour_lev = np.arange(-16, 25, 2)
color_map = get_ncl_colormap(
    "rainbow+white+gray",
    index=np.arange(38, 207, 8),
)
t_style = ContourStyle(
    colors=color_map,
    levels=contour_lev,
    fill=True,
)

绘制#

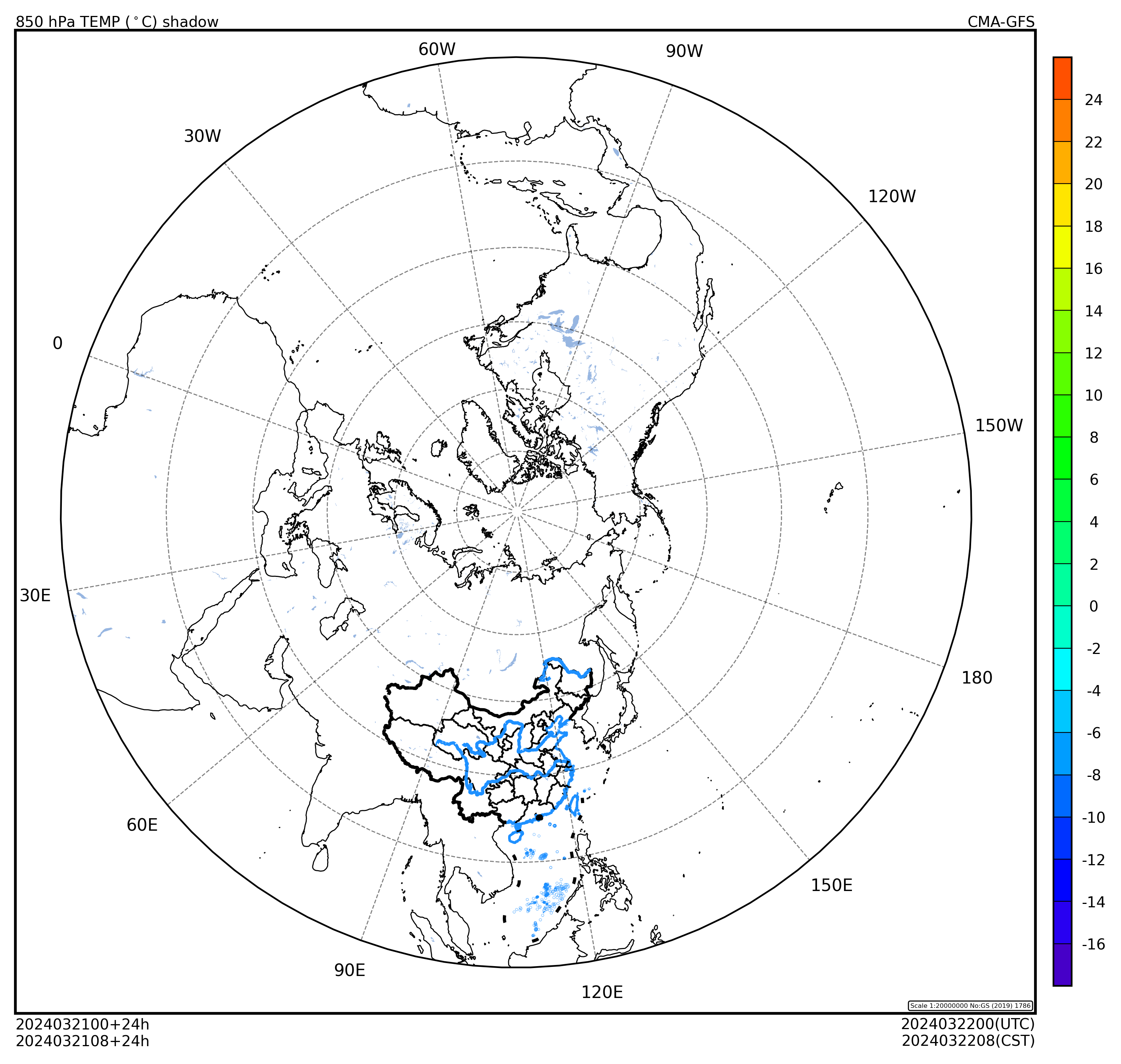

绘制底图布局

domain = NorthPolarMapDomain()
panel = Panel(domain=domain)

domain.set_title(
    panel=panel,
    graph_name="850 hPa TEMP ($^\circ$C) shadow",
    system_name="CMA-GFS",
    start_time=pd.to_datetime("2024-03-21 00:00"),
    forecast_time=pd.to_timedelta("24h"),
)
domain.add_colorbar(panel=panel, style=t_style)

panel.show()

<>:6: SyntaxWarning: invalid escape sequence '\c'
<>:6: SyntaxWarning: invalid escape sequence '\c'
/scratch/ipykernel_3846227/2093263972.py:6: SyntaxWarning: invalid escape sequence '\c'
  graph_name="850 hPa TEMP ($^\circ$C) shadow",
../../_images/171fcdc0063d5c004948879ca9c87d1ec53d3a427aaf46d99e2f3c9a97ccfb5f.png
