本节介绍如何使用 cedarkit-plots 绘制 850 hPa 风速填充图。

首先导入需要使用的包。包括：

数据结构：numpy, pandas
cedarkit 工具套件
- 数据准备：reki
  - 数据查找函数： find_local_file
  - GRIB2文件要素加载函数：load_field_from_file
- 气象可视化：cedarkit.plots
  - 绘图板：Panel
  - 底图布局：EastAsiaMapDomain
  - 绘图样式：ContourStyle
  - 颜色表加载函数：get_ncl_colormap

import numpy as np
import pandas as pd

from reki.data_finder import find_local_file
from reki.format.grib.eccodes import load_field_from_file

from cedarkit.plots.style import ContourStyle
from cedarkit.plots.chart import Panel
from cedarkit.plots.domains import EastAsiaMapTemplate
from cedarkit.plots.colormap import get_ncl_colormap

/home/wangdp/project/cedarkit/notebook-project/notebook-devel/repo/cedarkit-notebook-project/cedarkit-notebook/.venv/lib/python3.14/site-packages/gribapi/__init__.py:23: UserWarning: ecCodes 2.42.0 or higher is recommended. You are running version 2.34.1
  warnings.warn(

# 数据环境配置：使用本地数据目录（可用环境变量 CEDARKIT_NOTEBOOK_DATA_ROOT 覆盖）
from cedarkit_notebook.data import get_data_root, get_dataset_query

DATA_CLASS = "cmadaas"
STORAGE_BASE = str(get_data_root())

设置绘图的数据参数，使用 CMA-GFS 最近可获取的时次 024 数据。

system_name = "CMA-GFS"
data_type = "cma_gfs_gmf/grib2/orig"
# 起报时次与预报时效固定为本地已下载数据（见 data/metadata/cma-gfs.yaml）
query = get_dataset_query("cma-gfs")
start_time = pd.to_datetime(query["start_time"], format="%Y%m%d%H")
forecast_time = pd.to_timedelta(query["forecast_time"])

加载数据¶

获取 GRIB2 数据路径

file_path = find_local_file(
    data_type,
    start_time=start_time,
    forecast_time=forecast_time,
    data_class=DATA_CLASS,
    storage_base=STORAGE_BASE
)
file_path

PosixPath('/home/wangdp/project/cedarkit/notebook-project/notebook-devel/repo/cedarkit-notebook-project/cedarkit-notebook/data/DATA/NAFP/NMC/GRAPES-GFS-GLB/2026/20260725/Z_NAFP_C_BABJ_20260725000000_P_NWPC-GRAPES-GFS-GLB-02400.grib2')

加载 850 hPa 风场。风场在 ecCodes 的内置要素名为 u 和 v

u_850_field = load_field_from_file(
    file_path,
    parameter="u",
    level_type="pl",
    level=850
)
v_850_field = load_field_from_file(
    file_path,
    parameter="v",
    level_type="pl",
    level=850
)
u_850_field

计算得到风速场

wind_speed_850_field = np.sqrt(u_850_field ** 2 + v_850_field ** 2)
wind_speed_850_field

配置¶

定义填充图层次

wind_speed_contour_lev = np.arange(8, 26, 2)

定义填充图色表

color_index = np.arange(90, 236, 15) - 2
color_index[0] = -1
wind_speed_color_map = get_ncl_colormap(
    "rainbow+white+gray", index=color_index
)

定义填充图样式 (ContourStyle)

wind_speed_style = ContourStyle(
    colors=wind_speed_color_map,
    levels=wind_speed_contour_lev,
    fill=True,
)

绘制¶

创建中国区域底图布局

domain = EastAsiaMapTemplate()

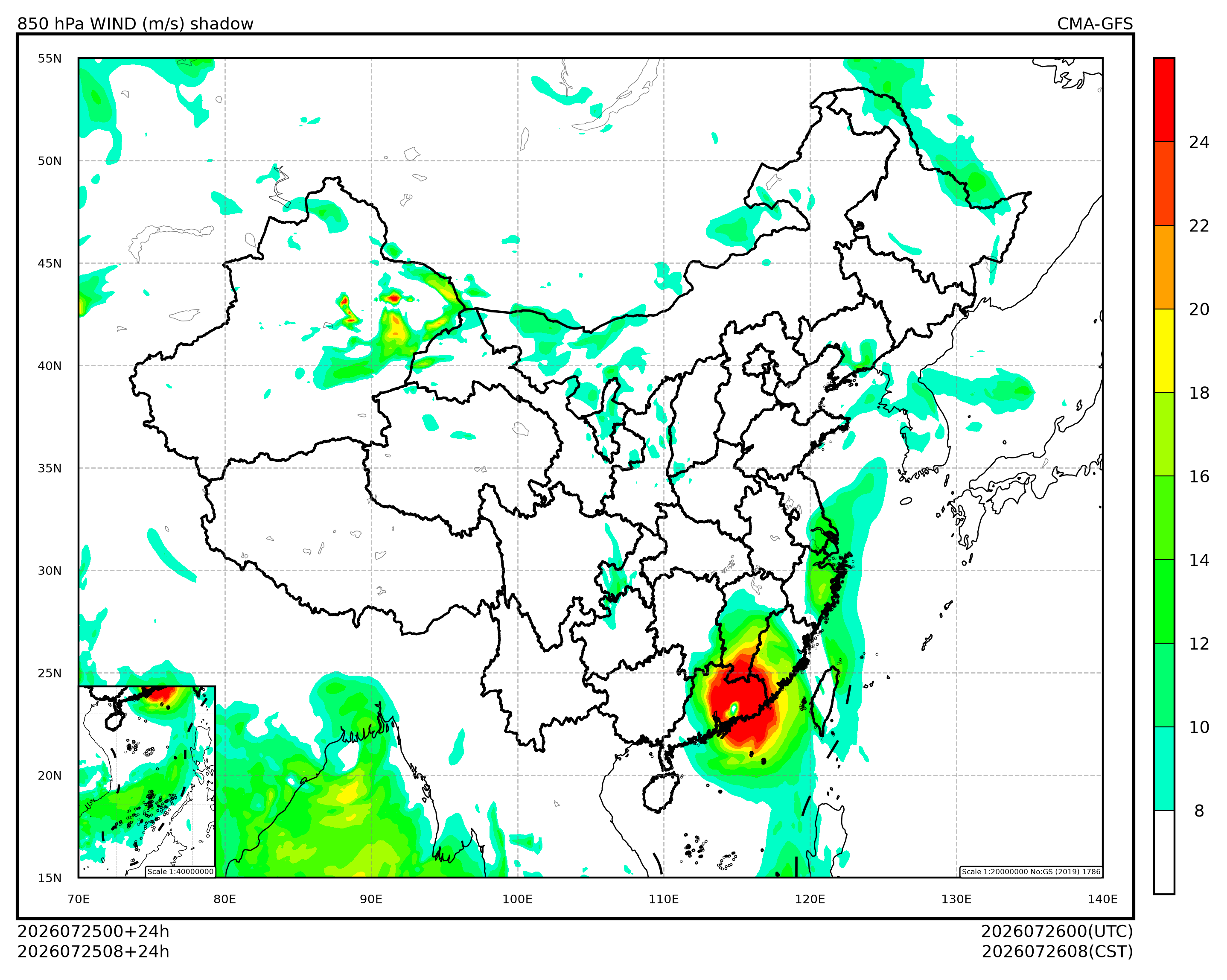

绘制填充图，设置标题和颜色条

panel = Panel(domain=domain)
panel.plot(wind_speed_850_field, style=wind_speed_style)

domain.set_title(
    panel=panel,
    graph_name="850 hPa WIND (m/s) shadow",
    system_name=system_name,
    start_time=start_time,
    forecast_time=forecast_time,
)
domain.add_colorbar(panel=panel, style=wind_speed_style)
panel.show()
