开始使用

本节介绍 reki 库的主要功能。

首先导入需要使用的一些库。

import datetime

import numpy as np
import pandas as pd
import xarray as xr
import eccodes

/home/wangdp/project/cedarkit/notebook-project/notebook-devel/repo/cedarkit-notebook-project/cedarkit-notebook/.venv/lib/python3.14/site-packages/gribapi/__init__.py:23: UserWarning: ecCodes 2.42.0 or higher is recommended. You are running version 2.34.1
  warnings.warn(

import xarray as xr
import pandas as pd
from reki.data_finder import find_local_file
from reki.format.grib import load_field_from_file

# 数据环境配置：使用本地数据目录（可用环境变量 CEDARKIT_NOTEBOOK_DATA_ROOT 覆盖）
from cedarkit_notebook.data import get_data_root, get_dataset_query

DATA_CLASS = "cmadaas"
STORAGE_BASE = str(get_data_root())

start_time = pd.Timestamp.now('UTC').floor(freq="D") - pd.Timedelta(days=2)
start_time_label = start_time.strftime("%Y%m%d%H")
forecast_time_label = "24h"
forecast_time = pd.to_timedelta(forecast_time_label)
print("start_time:", start_time)
print("start_time_label:", start_time_label)
print("forecast_time:", forecast_time)
print("forecast_time_label:", forecast_time_label)

start_time: 2026-08-16 00:00:00+00:00
start_time_label: 2026081600
forecast_time: 1 days 00:00:00
forecast_time_label: 24h

system_name = "CMA-GFS"
data_type = "cma_gfs_gmf/grib2/orig"
# 起报时次与预报时效固定为本地已下载数据（见 data/metadata/cma-gfs.yaml）
query = get_dataset_query("cma-gfs")
start_time = pd.to_datetime(query["start_time"], format="%Y%m%d%H")
forecast_time = pd.to_timedelta(query["forecast_time"])

from reki.data_finder import find_local_file

gfs_grib2_file_path = find_local_file(
    "cma_gfs_gmf/grib2/orig",
    start_time=start_time,
    forecast_time=forecast_time,
    data_class=DATA_CLASS,
    storage_base=STORAGE_BASE,
)
gfs_grib2_file_path

PosixPath('/home/wangdp/project/cedarkit/notebook-project/notebook-devel/repo/cedarkit-notebook-project/cedarkit-notebook/data/DATA/NAFP/NMC/GRAPES-GFS-GLB/2026/20260725/Z_NAFP_C_BABJ_20260725000000_P_NWPC-GRAPES-GFS-GLB-02400.grib2')

file_path = find_local_file(
    data_type,
    start_time=start_time,
    forecast_time=forecast_time,
    data_class=DATA_CLASS,
    storage_base=STORAGE_BASE
)
file_path

PosixPath('/home/wangdp/project/cedarkit/notebook-project/notebook-devel/repo/cedarkit-notebook-project/cedarkit-notebook/data/DATA/NAFP/NMC/GRAPES-GFS-GLB/2026/20260725/Z_NAFP_C_BABJ_20260725000000_P_NWPC-GRAPES-GFS-GLB-02400.grib2')

geps_grib2_file_path = find_local_file(
    "cma_geps/grib2/orig",
    start_time=start_time_label,
    forecast_time=forecast_time_label,
    number=2,
    data_class=DATA_CLASS,
    storage_base=STORAGE_BASE
)
geps_grib2_file_path

reki 也内置了模式输出的一些中间文件。

下面示例获取 CMA-GFS 系统 240 时效的模式面二进制数据文件路径。

gfs_modelvar_file_path = find_local_file(
    "cma_gfs_gmf/bin/modelvar",
    start_time=start_time,
    forecast_time="240h",
)
gfs_modelvar_file_path

reki 内置的配置文件请查看 reki/data_finder/conf 目录。

读取 GRIB2 文件¶

基本方法¶

reki 使用 eccodes 从 GRIB2 文件中检索要素场，并返回 xarray.DataArray 对象。

下面示例从 CMA-GFS 的 GRIB2 产品文件中加载 850hPa 温度场。其中：

parameter 参数表示要素名称，t 代表温度
level_type 参数表示层次类型，pl 代表等压面层，单位 hPa
level 参数表示层次值

from reki.format.grib.eccodes import load_field_from_file

field = load_field_from_file(
    gfs_grib2_file_path,
    parameter="t",
    level_type="pl",
    level=850,
)
field

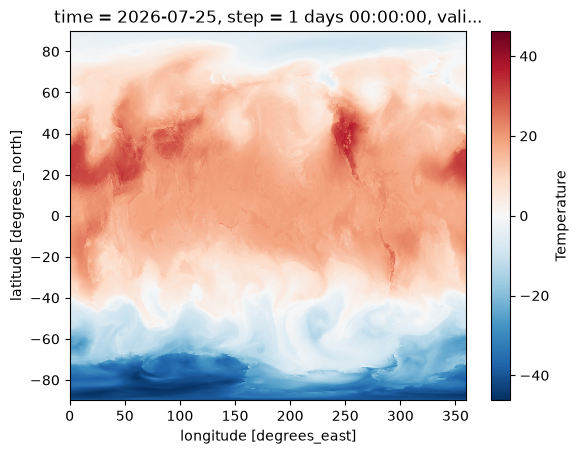

可以使用 xarray 提供的一系列功能对要素场进行分析。比如使用 xarray.DataArray.plot() 函数实现快速绘图。

(field - 273.15).plot()

层次类型¶

reki 支持从模式面数据中加载要素场。

下面代码从 CMA-GFS 的模式面 GRIB2 数据中加载第 10 层 u 分量，其中 ml 表示模式面。

注：MODEVAR 的 GRIB2 仅保存在 CMA-HPC2023 超算平台中，下面代码暂不执行。

gfs_model_grib2_file_path = find_local_file(
    "cma_gfs_gmf/grib2/modelvar",
    start_time=start_time,
    forecast_time=forecast_time,
)
gfs_model_grib2_file_path

field = load_field_from_file(
    gfs_model_grib2_file_path,
    parameter="u",
    level_type="ml",
    level=10,
)
field

ecCodes 接口¶

reki 支持返回 ecCode Python API 的 GRIB message。

下面代码加载 850hPa 位势高度场。首先获取 GRIB message。

from reki.format.grib.eccodes import load_message_from_file

message = load_message_from_file(
    gfs_grib2_file_path,
    parameter="gh",
    level_type="pl",
    level=850
)
message

651024160

读取经纬度格点数和数据值，将数据重组成二维数组。

values = eccodes.codes_get_double_array(message, "values")
ni = eccodes.codes_get_long(message, "Ni")
nj = eccodes.codes_get_long(message, "Nj")
values.reshape(nj, ni)

array([[1224.63710938, 1224.63710938, 1224.63710938, ..., 1224.63710938,
        1224.63710938, 1224.63710938],
       [1225.23710938, 1225.23710938, 1225.23710938, ..., 1225.23710938,
        1225.23710938, 1225.23710938],
       [1225.53710938, 1225.53710938, 1225.53710938, ..., 1225.53710938,
        1225.53710938, 1225.53710938],
       ...,
       [1246.53710938, 1246.43710938, 1246.23710938, ..., 1246.43710938,
        1246.53710938, 1246.53710938],
       [1243.83710938, 1243.83710938, 1243.83710938, ..., 1243.83710938,
        1243.83710938, 1243.93710938],
       [1243.03710938, 1243.03710938, 1243.13710938, ..., 1243.13710938,
        1243.13710938, 1243.13710938]], shape=(1440, 2880))

释放 GRIB 消息对象

eccodes.codes_release(message)
